COMPUTER AIDED DESIGN

Over the years, we at GVPL Technologies have accumulated a variety of experiences with the software in our bag. Here are a few examples of how we integrate CAD with our product designing process:

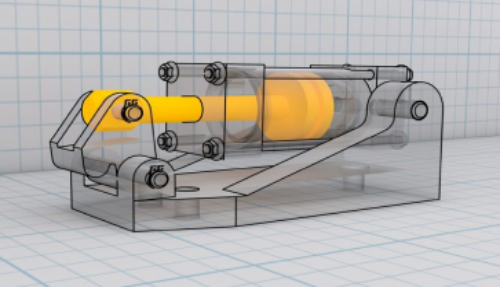

3D CAD of Compressor Assembly

• Dimension calculation from 3D scanning
• 3D CAD of detailed parts
• Assembly of all components
• Interference check
• Defining connections, and joints
• Solid, surface, and sheet metal modeling

2D Drafting & Detailing

• Drafting of 3D CAD model generated from scanning
• GA drawing of the compressor assembly
• Detail drawing of individual component
• Definition of bill of material
• Geometric dimensioning and tolerances
• Definition of connection and joints
• Revision of drawings as per requirements

Multi-Body Dynamics of Power Train

• Dynamics of machine evaluated
• Component interference identified
• System behavior under applied force/ load is evaluated
• Mechanism is validated
• Animation of machine dynamic

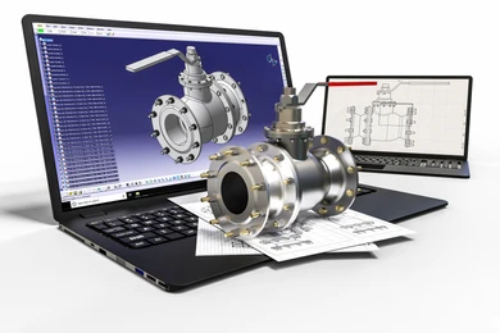

Rendering of valve

• Rendering of 3D CAD of valve
• Application of material and color
• Rendering is done for product launch and marketing

The CAD software enables our engineers to precisely visualize product concepts with the help of realistic 2D and 3D rendered models. With that, the productivity of our designers is improved along with the quality of the design. It also helps us create a solid database for manufacturing and track all your product needs.
